A series of specific kits for various types of machining, already composed of everything necessary (bases, clamp bodies, supports, jaws )
MAXI CROSSBAR
MAXI CROSSBAR
Crossbars with fixing slot made according to the distance between holes of each machine table.

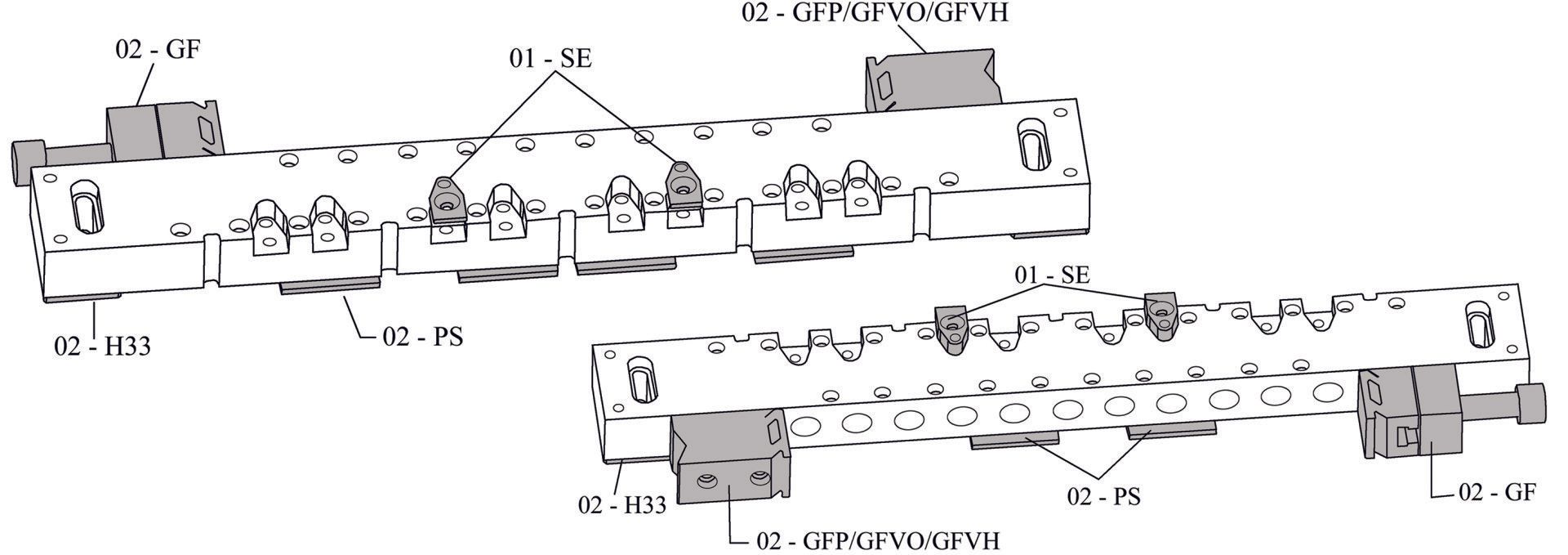

Each crossbar is equipped with fixing brackets Art. 01 - SE, and with a series of workpiece holders plates Art. 02 - PS and two anti-collision spacers Art. 02 - H33 which, by using them, allow the free passage of the lower wire guide head, and the positioning of the workpiece at 3. 3 mm with respect to the machine table. If the spacers 02 - H33 are removed, the workpieces to be machined will be at zero with respect to the machine table.
02 - TMAX

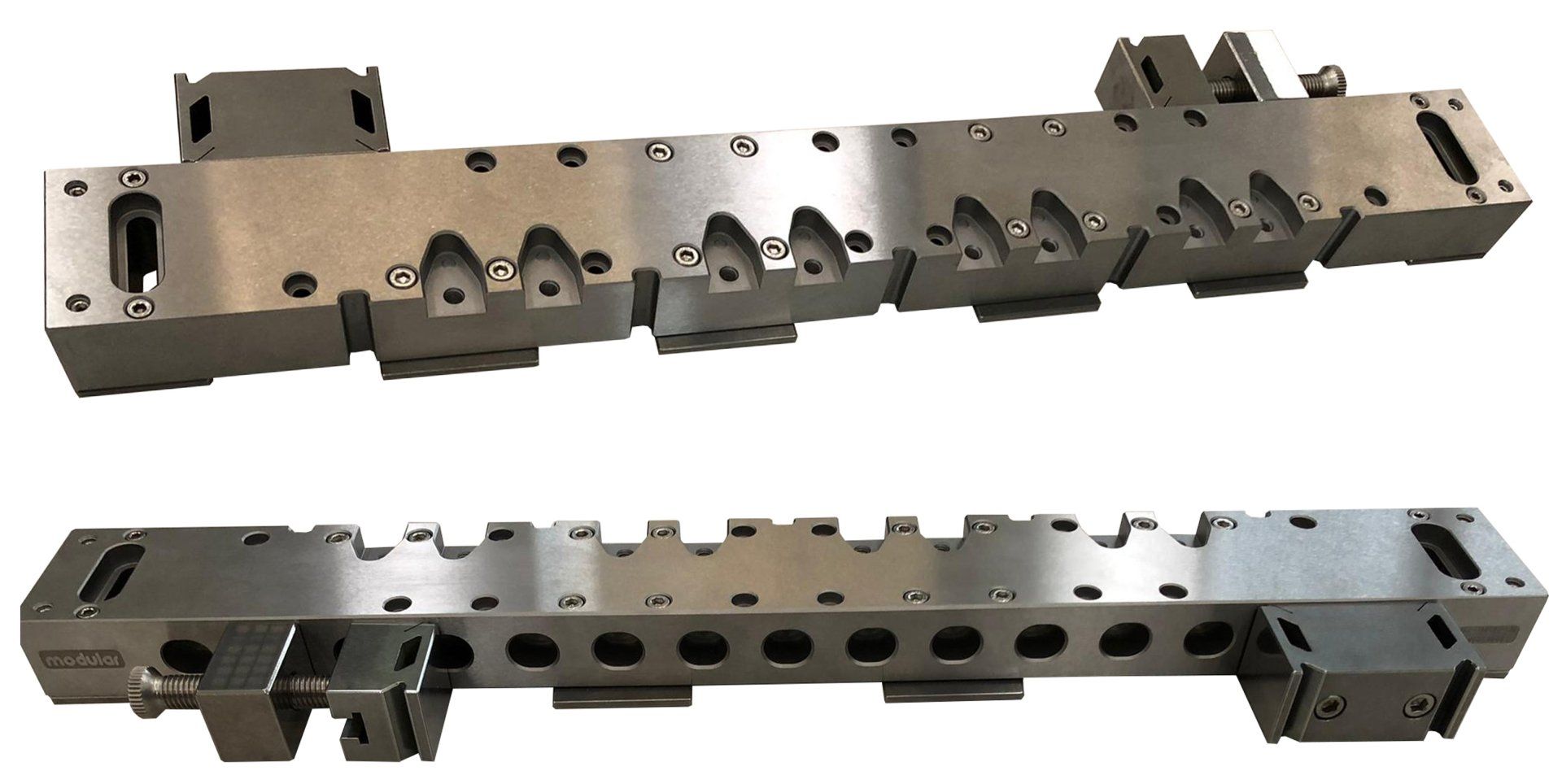

MAXI CROSSBAR BILATERA
From CHF 2.289,00
(excluding fastening set)
Crossbars with 25 mm span adjustment.
On the opposite bank one can find a maxi clamp useful for fixing large pieces composed of one or more fastening set and two support plates Art. 02 - PS designed to facilitate the clamping of the pieces. They must be removed before processing begins.
The fixing of the piece takes place the brackets 01 - SE, or by means of the fastening set.

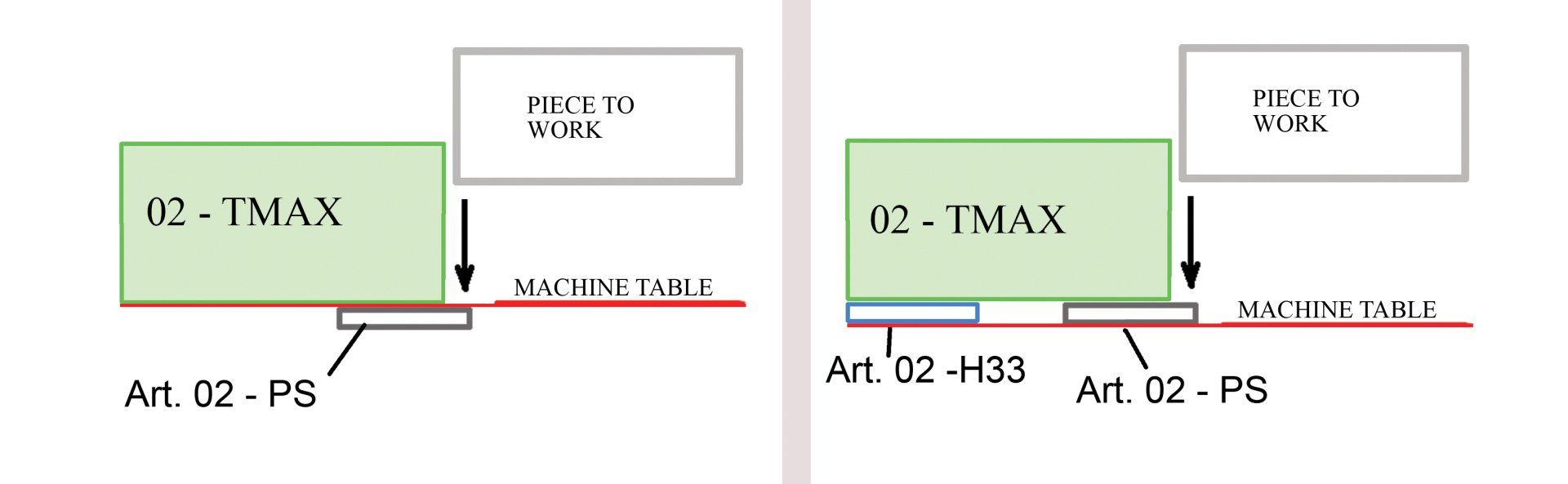

For work with the work piece
placed at the same height as the machine table
For work with the work piece
placed at 3.3 mm from the table of the machine
insert the spacer 02 - H33

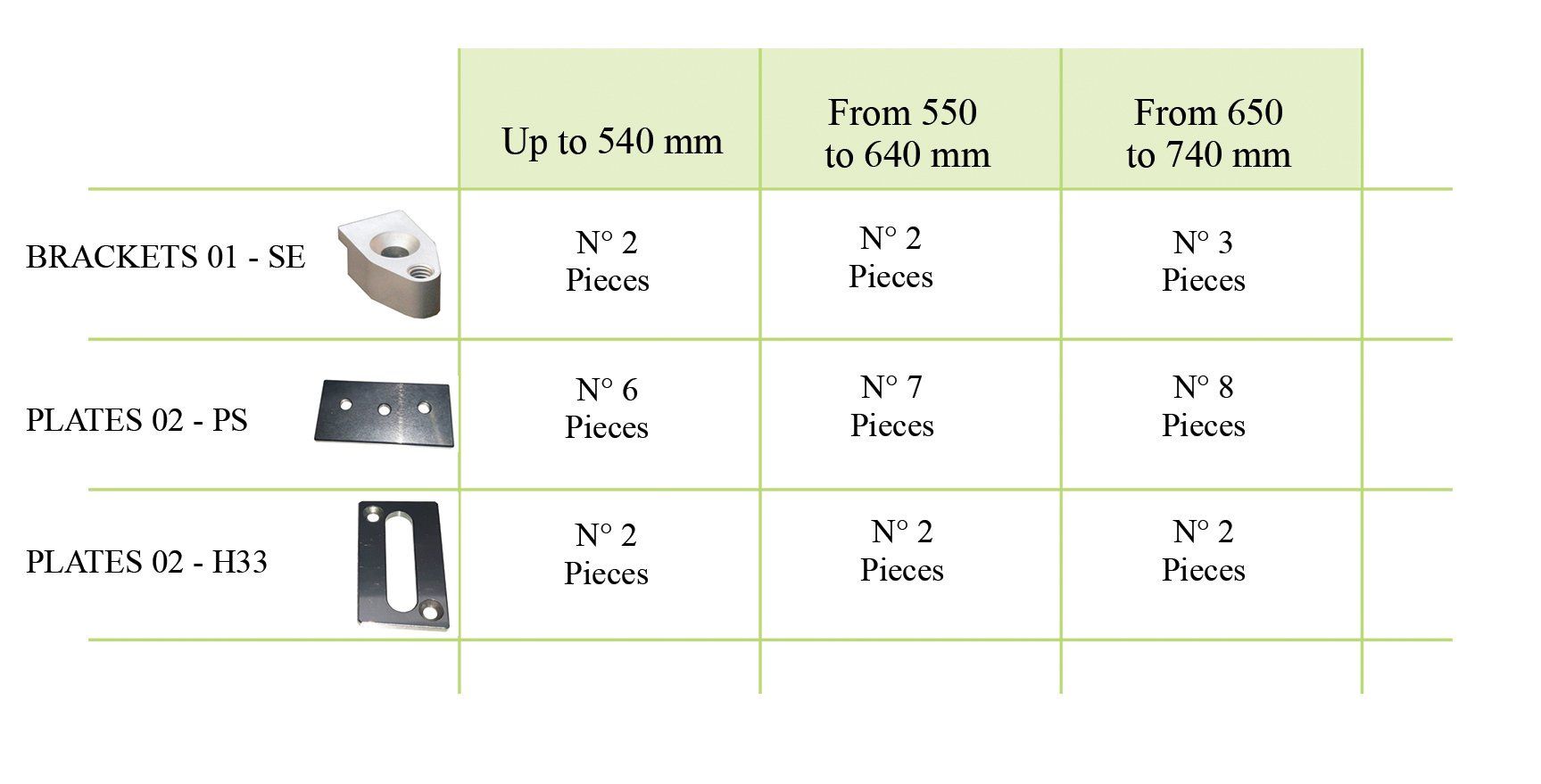

ACCESSORIES IN ACCORDING TO THE DISTANCE BETWEEN HOLES OF THE MACHINE TABLE
FASTENING SET

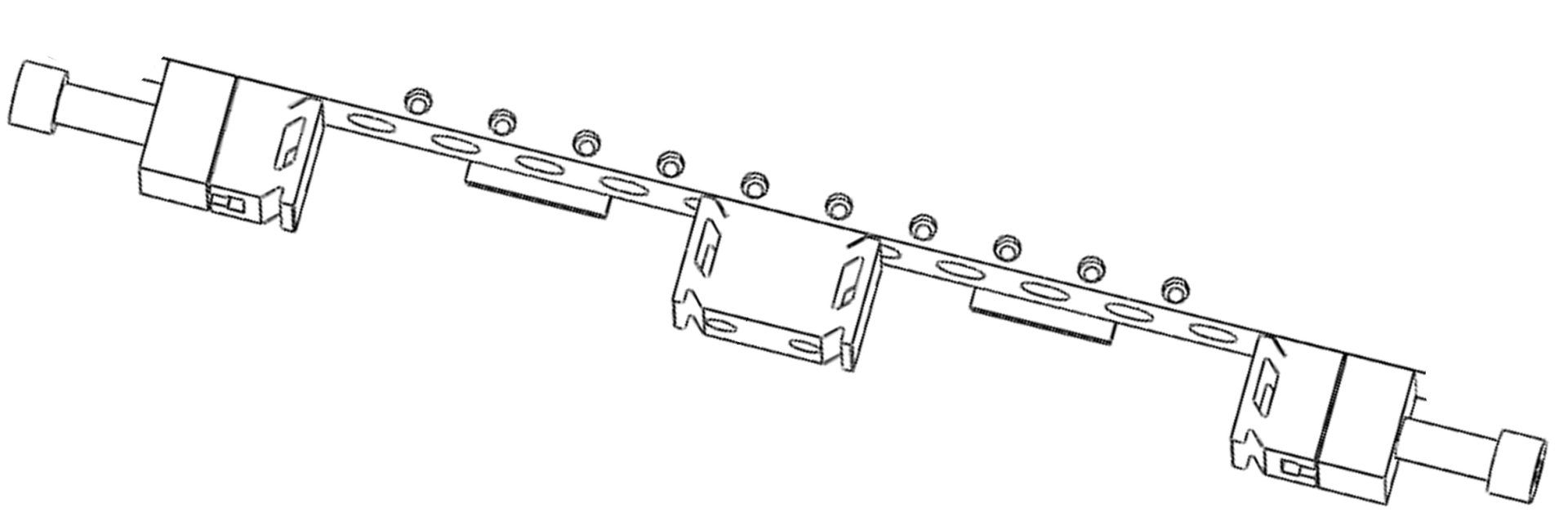

Composition of the MAXI CLAMP
Mobile part Fixed part

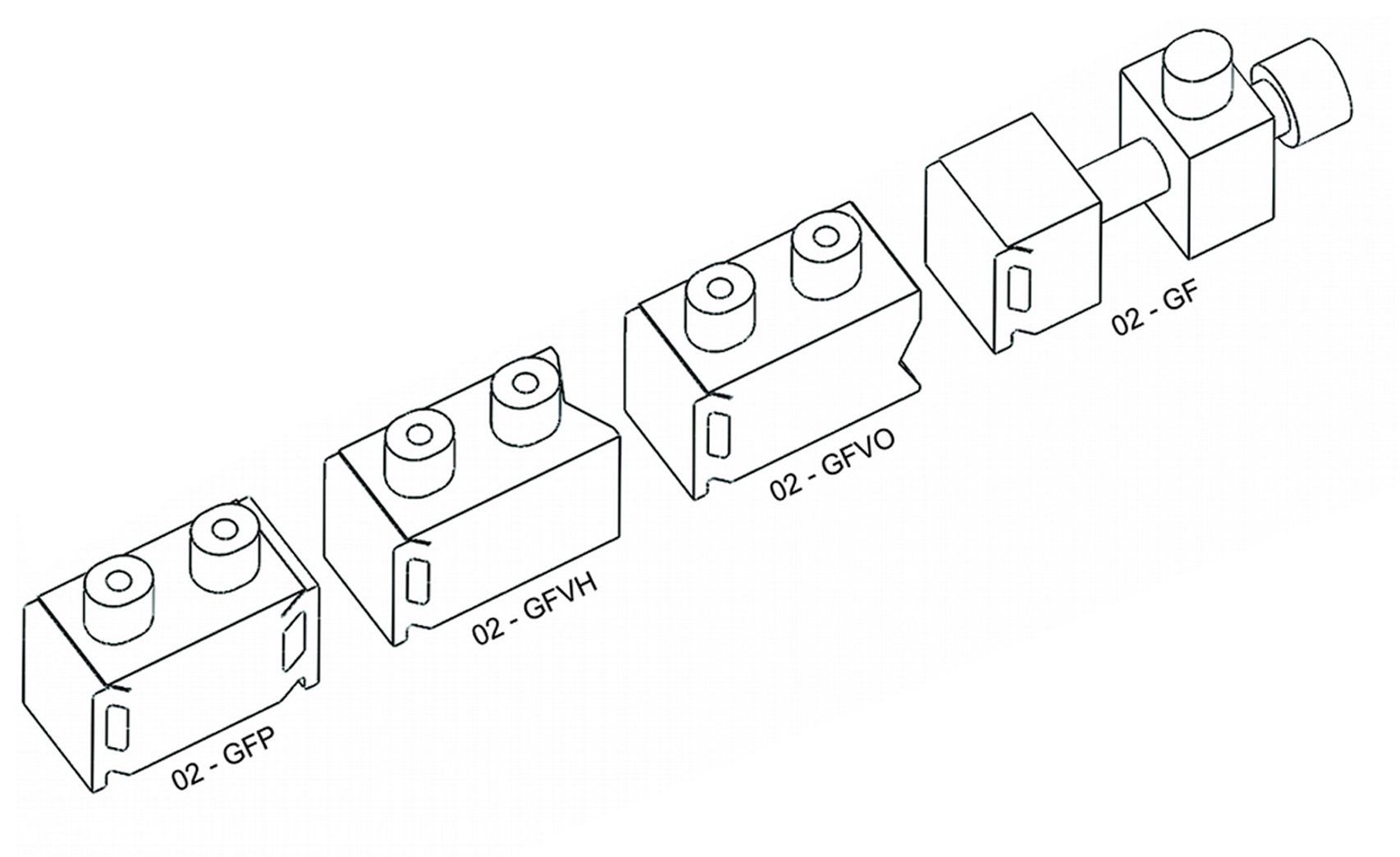

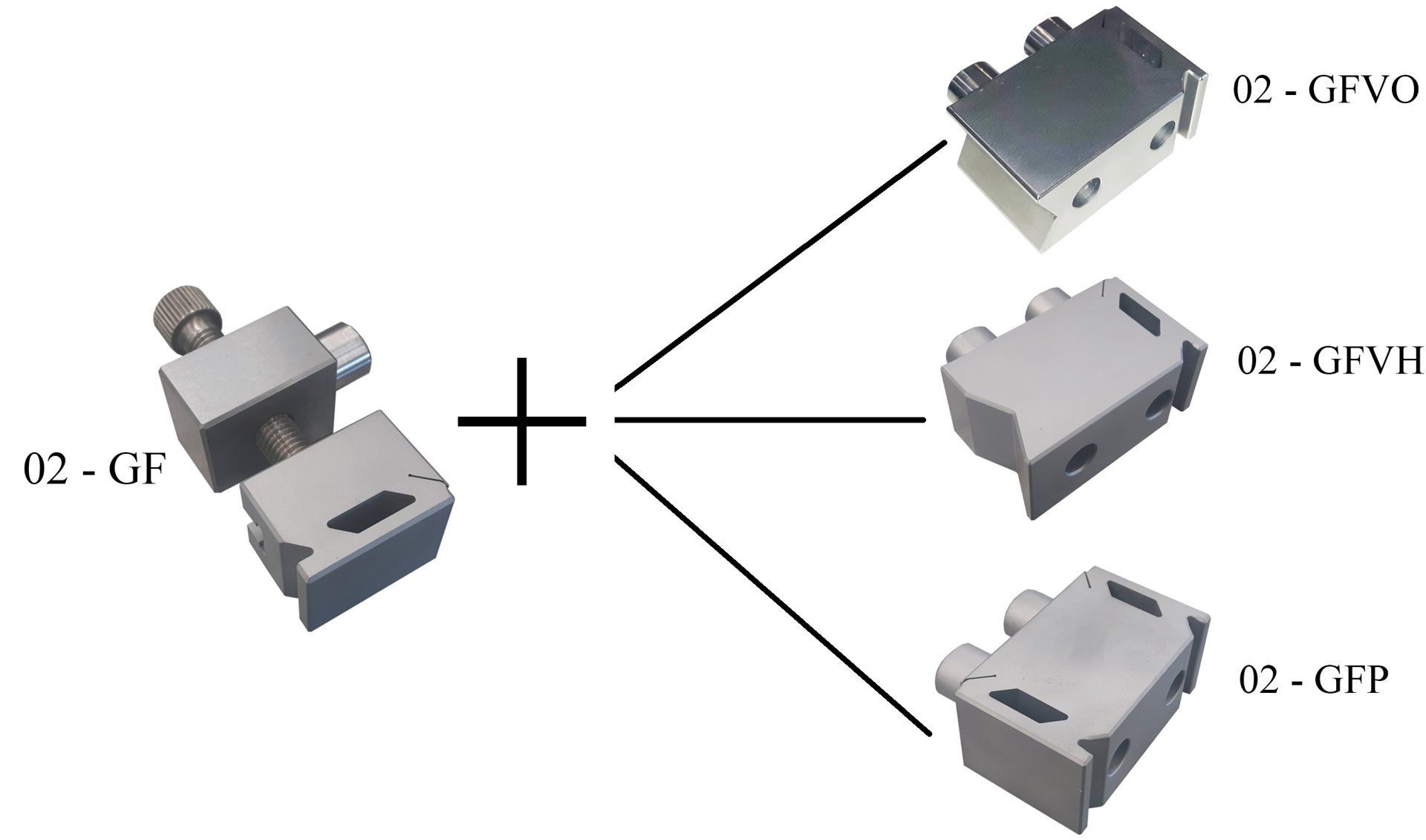

The Fastening set consists of a mobile part, Art. 02 - GF and a fixed part which can be of three versions.
The chosen fastening set is not an integral part of the Traverse, which must therefore be ordered separately.
In crossbars with a second and third level band (with fixing at center distance above 550 mm), it is possible to use two moving parts Art. 02 - GF, so as to form two maxi clamp.
