SLIDING CROSSBARS
SLIDING CROSSBARS
Crossbar fixed to sliding heads on two slides. Span adjustment and fixing slot made according to the distance between holes of each machine table.
Each crossbar is equipped with fixing brackets Art. 01 - SE, and a series of workpiece holder plates Art. 02 - PS to be used for placing the workpiece at 3. 3 mm above the machine table. Or from a series of workpiece holder plates Art. 02 - PSZ to be used to place the piece to be machined at zero with respect to
the machine table.
Possibility of anchoring all clamp - body, LINE 01 and ESSENTIAL LINE
02 - TSS
SLIDING CROSSBARS MONOLATERAL
From CHF 4.036,00
Crossbar with 200 mm span adjustment.
In the opposite bank to the one of the workpiece holder plates there are holes with M6 thread that allow the fixing of pieces with particular geometries.
The piece is fixed using the brackets 01 - SE, or with the use of the adjustable Clamp - bodies LINEA 01 and ESSENTIAL LINE.

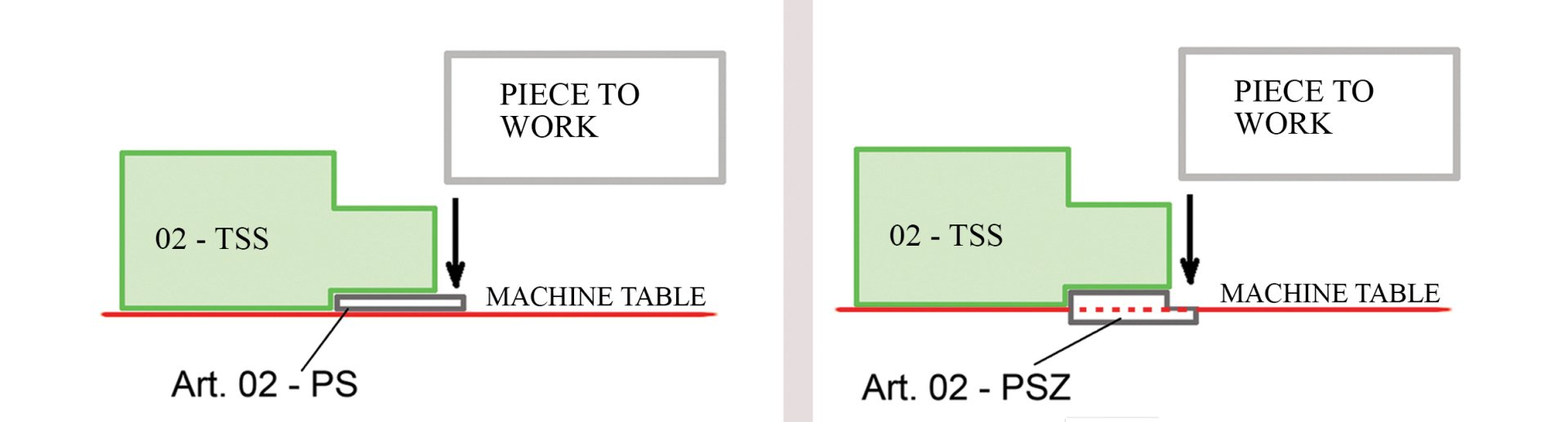

For work with the work piece placed at 3.3 mm from the table of the machine insert the plates 02 - PS
For work with the work piece placed at the same height as the machine table use the plates 02 - PSZ

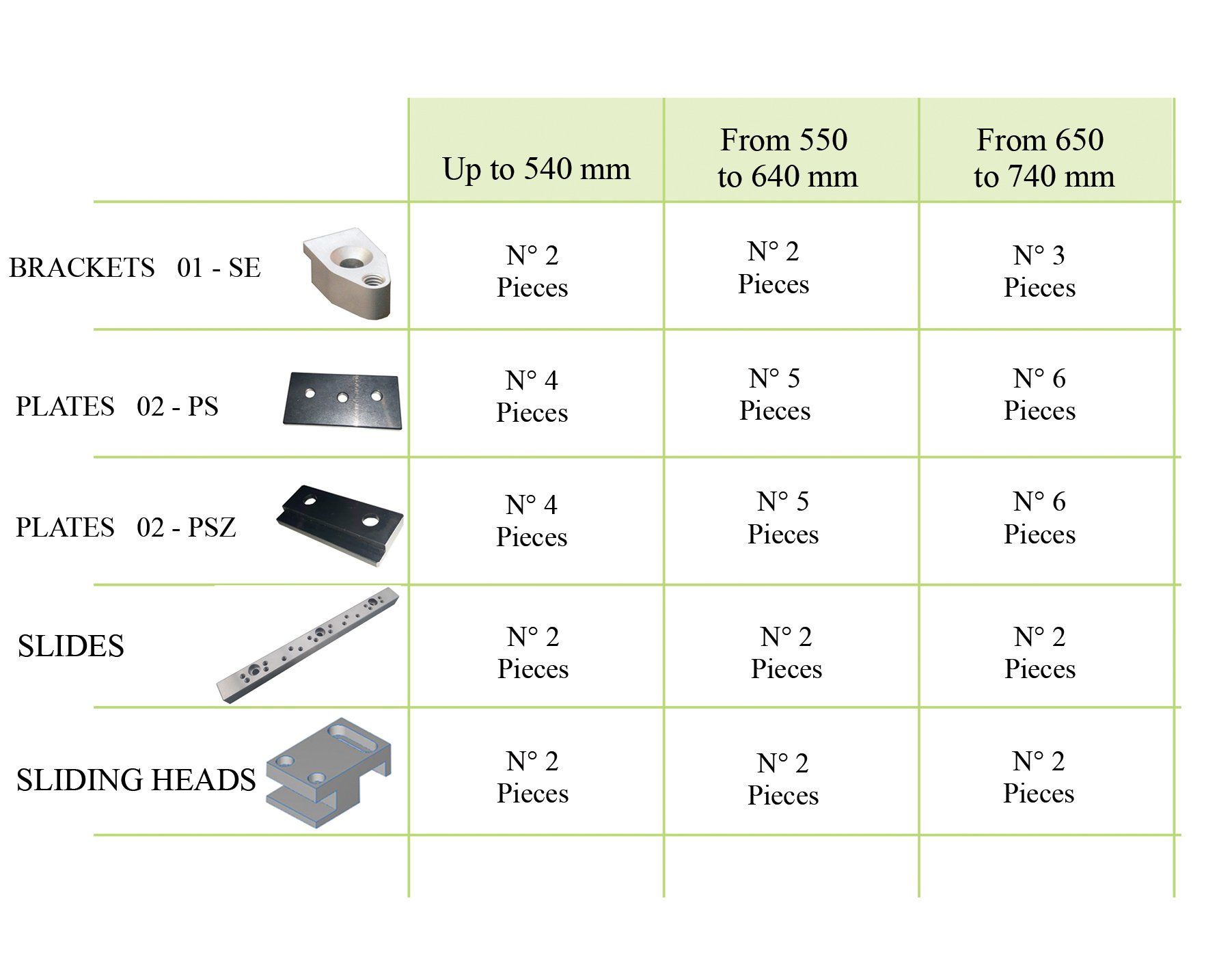

ACCESSORIES IN ACCORDING TO THE DISTANCE BETWEEN HOLES OF THE MACHINE TABLE
