A series of specific kits for various types of machining, already composed of everything necessary (bases, clamp bodies, supports, jaws )


01 - 60110

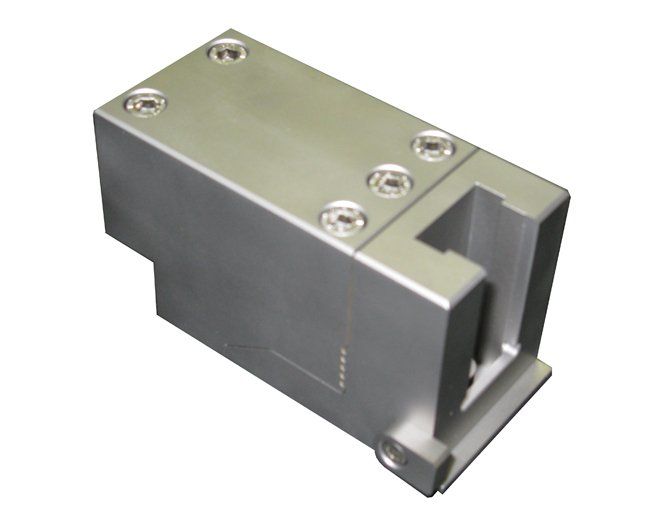

Adjustable clamp - body

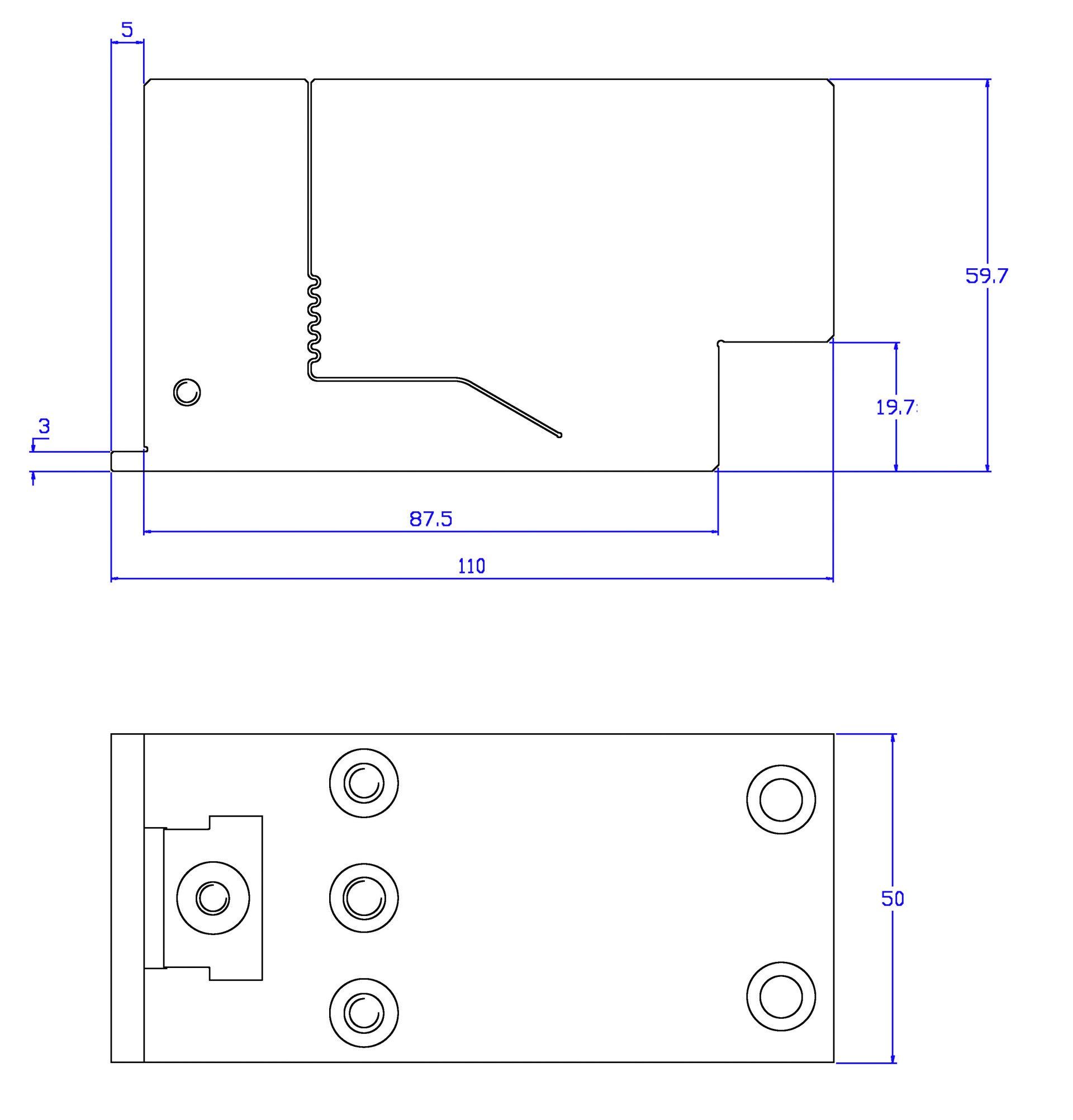

Adjustable clamp body with height 60 mm.
Fixing capacity according to the jaw used.

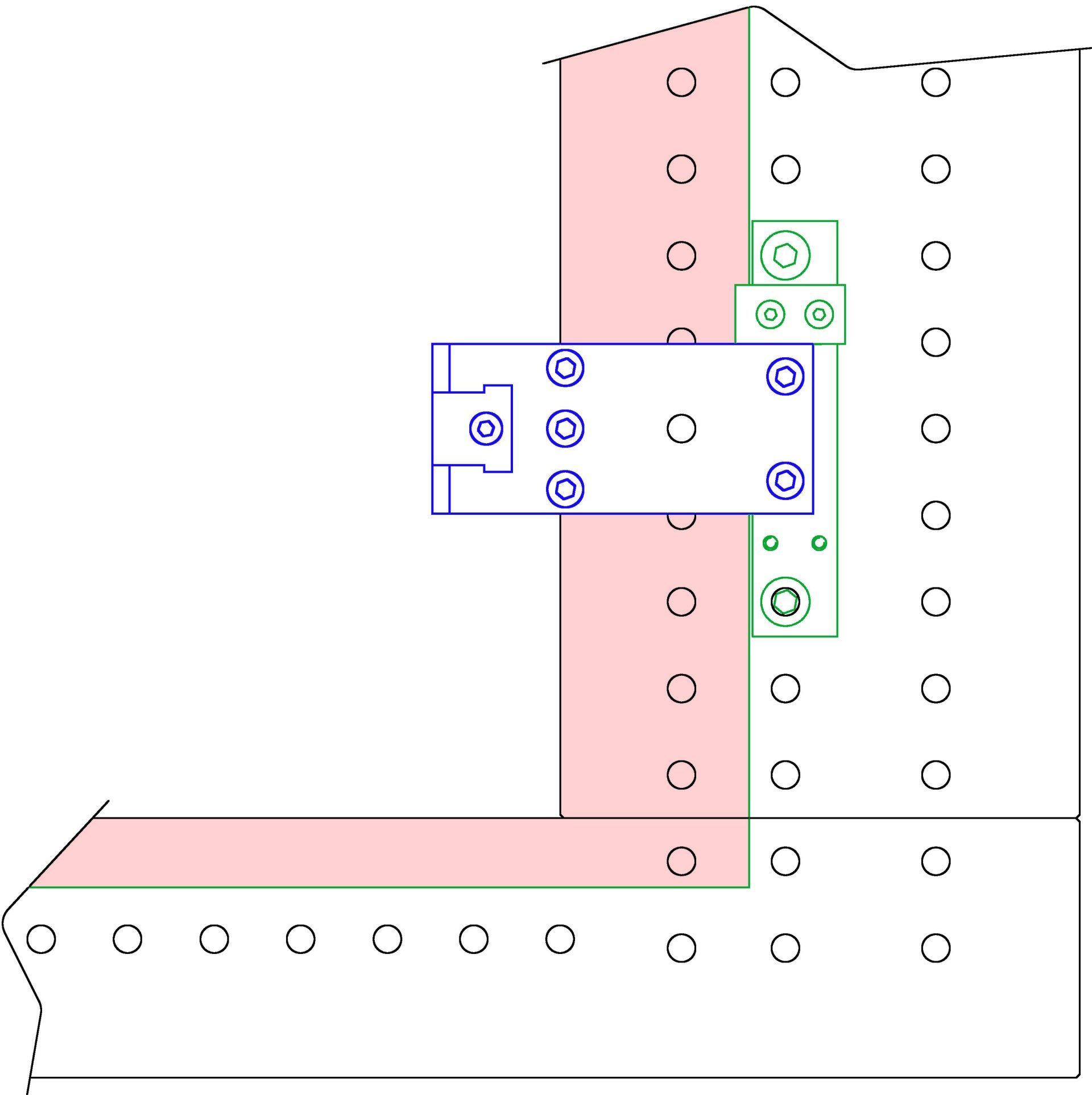

It can be fastened to the machine table using the holes of the second line, where available, in order to place workpieces directly on the machine board, without removing the bases.
Supplied along with stop 01­S.
A base of the 02 line or a crossbar is required for anchoring to the machine table.
The workpiece is 3.3 mm above the machine table, allowing free passage of the lower thread guide head.
CHF 996,00
