A series of specific kits for various types of machining, already composed of everything necessary (bases, clamp bodies, supports, jaws )


CROSSBARS COMPOSITIONS

6 compositions with 6 versions each
All six compositions containing a pair of crossbars plus their respective accessories, to these are added the clamp bodies with jaws to reach a maximum of functionality and versatility.
COMPOSITIONS
101   102    103
The combination include two unilateral crossbars Item 02 - TSM.
Complete with brackets Art. 01 - SE, with a set of little plates for workpiece fastening, a clamp-body plus the relative jaws and service keys.
COMPOSITIONS
104    105    106
The combination include one unilateral crossbar 02 - TSM and a crossbar fixed to sliding heads plus relative slides 02 - TSS.
Complete with brackets Art. 01 - SE, with a set of little plates for workpiece fastening, a clamp-body plus the relative jaws and service keys.

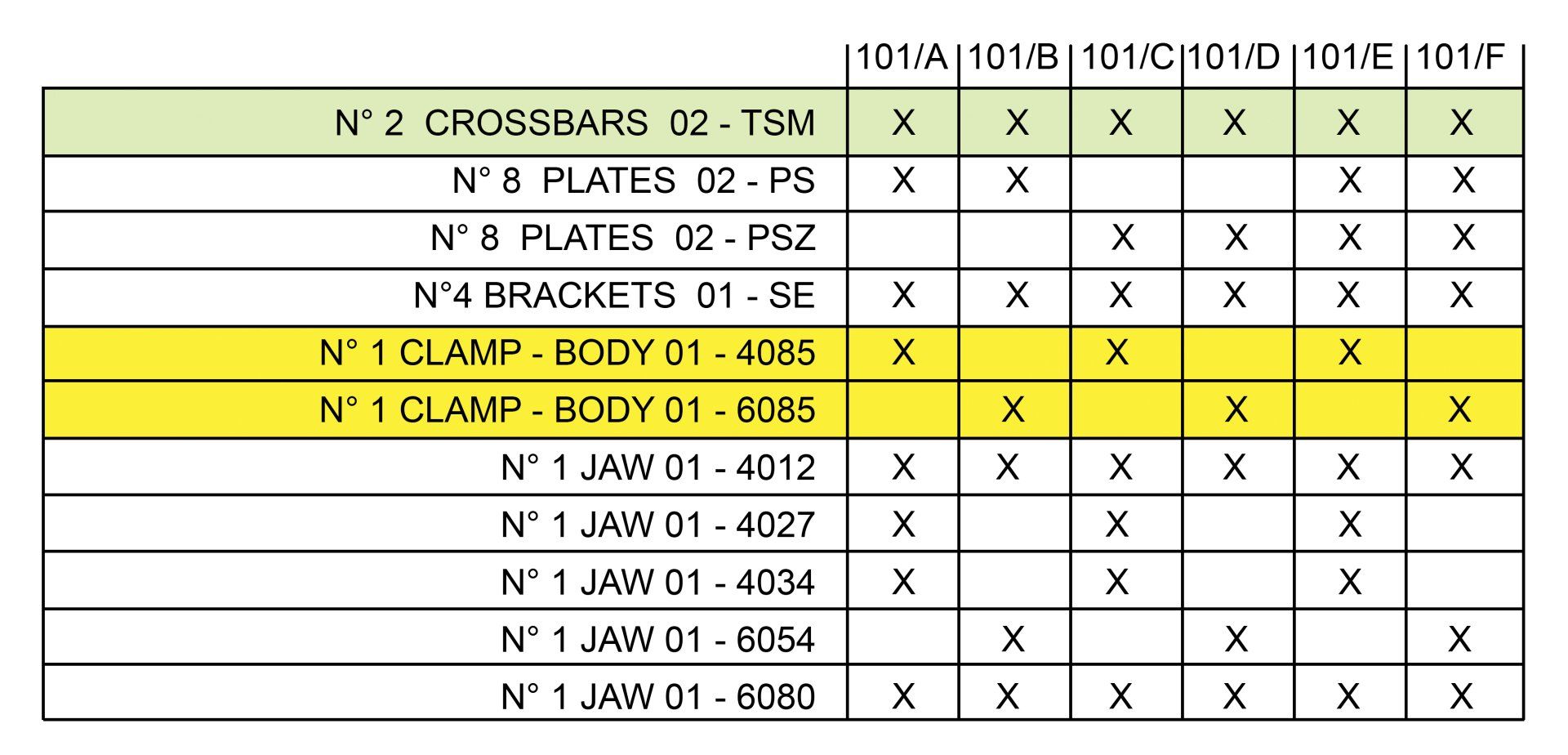

COMP. 101               From CHF 5.631,00
Suitable for machine tables with fixing holes at distance between centers up to 540 mm.

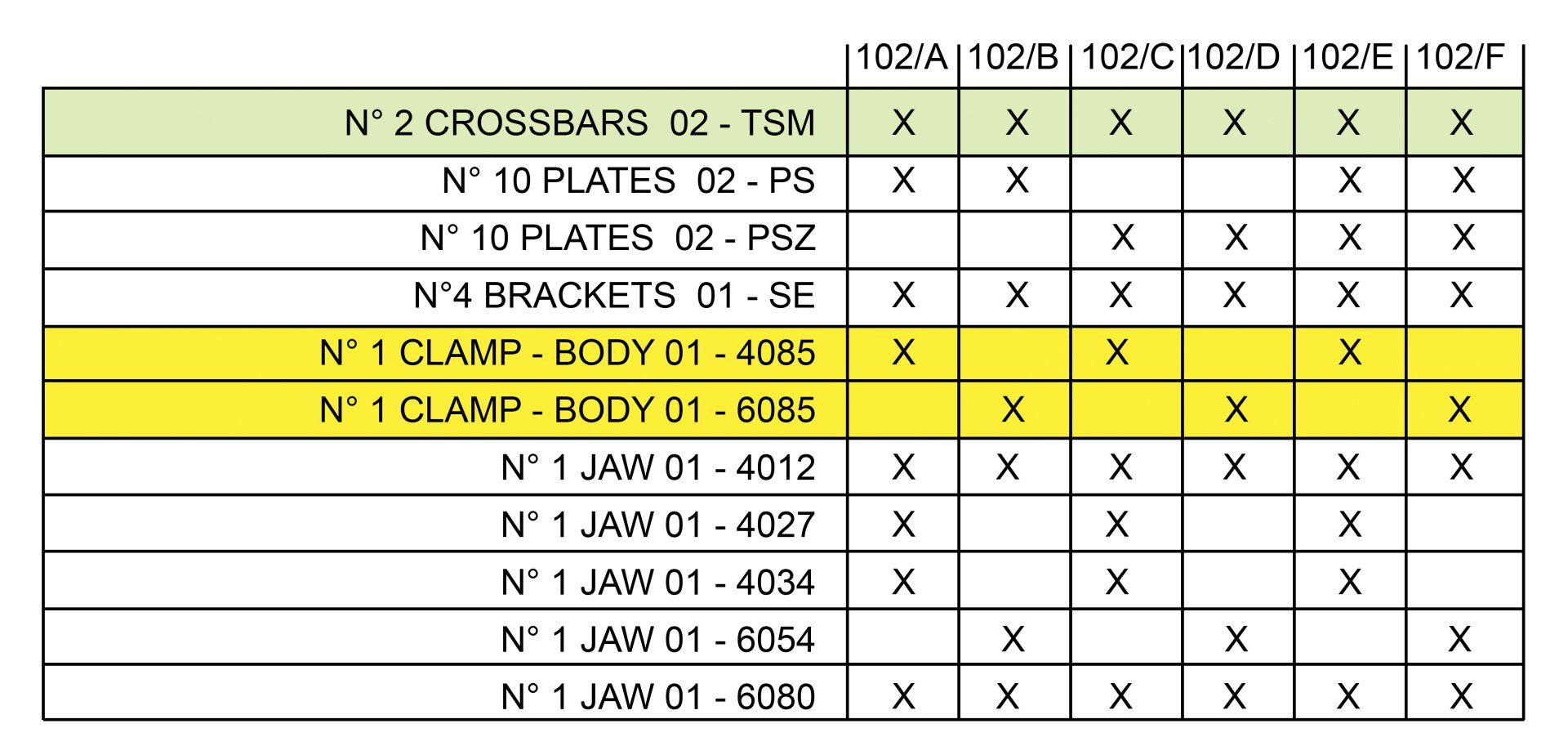

COMP. 102              From CHF 6.018,00
Suitable for machine tables with fixing holes at distance between centers from 550 to 640 mm.

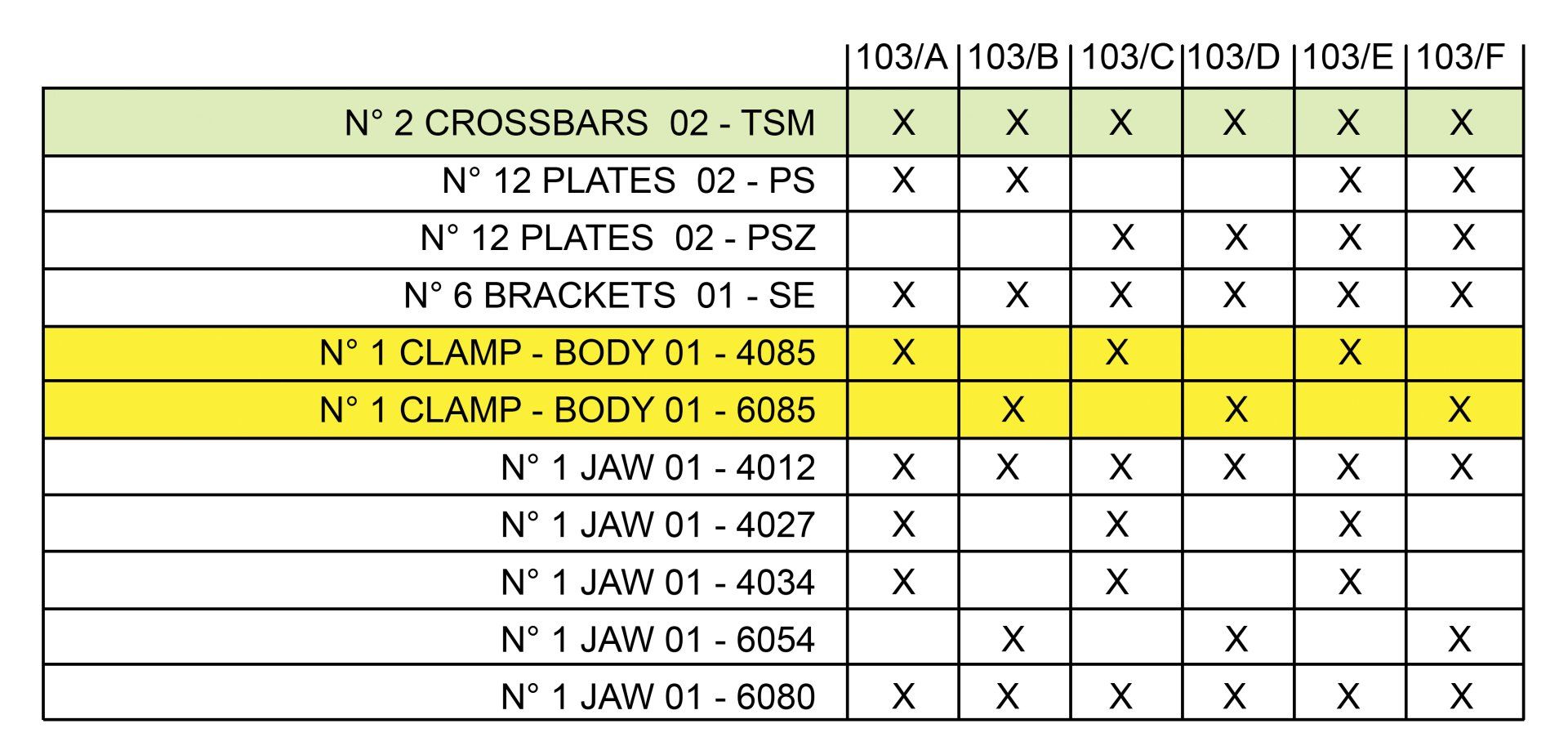

COMP. 103              From CHF 6.657,00
Suitable for machine tables with fixing holes at distance between centers from 650 to 740 mm.
COMP. 104               From CHF 7.678,00
Suitable for machine tables with fixing holes at distance between centers up to 540 mm.
COMP. 105              From CHF 8.064,00
 Suitable for machine tables with fixing holes at distance
 between centers from 550 to 640 mm.

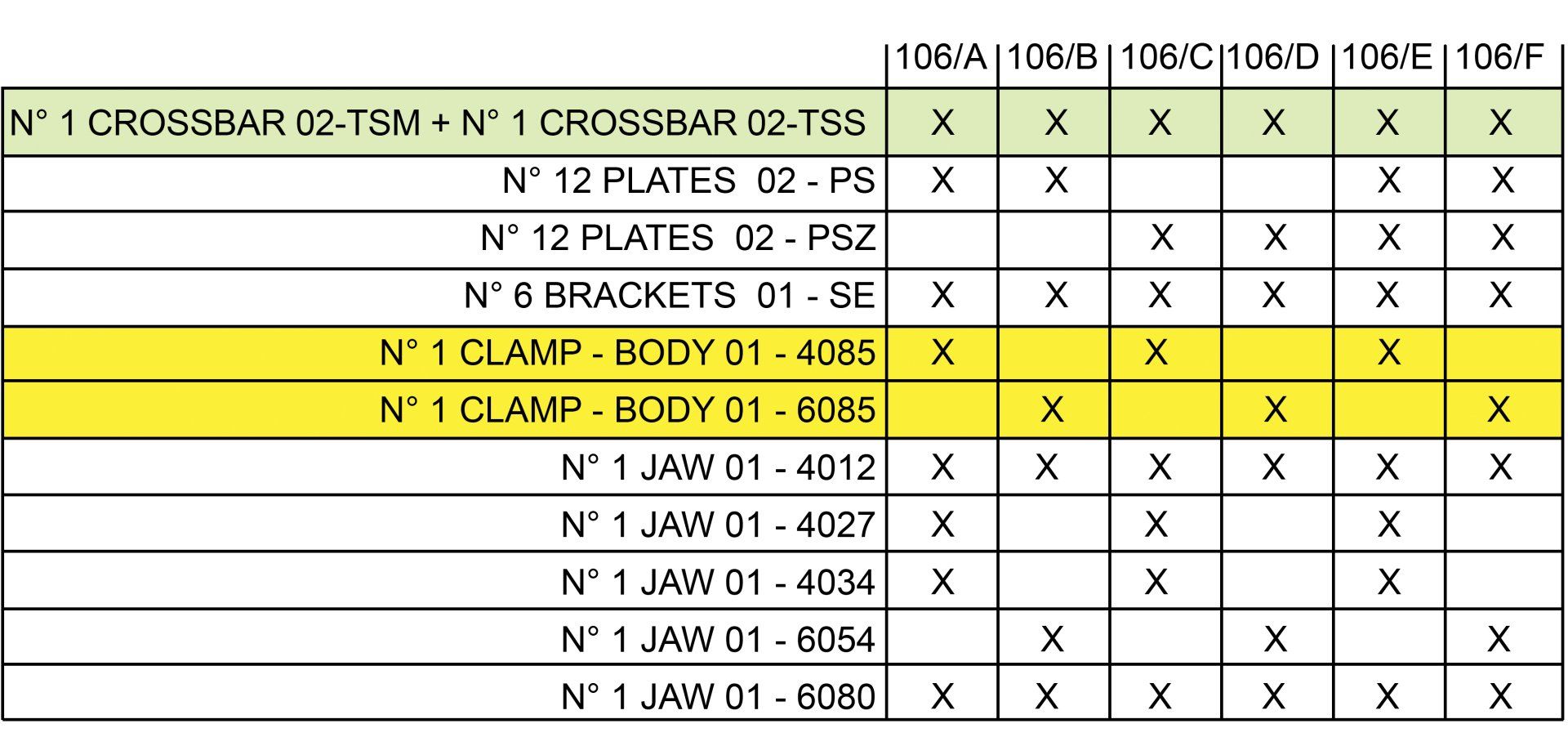

COMP. 106              From CHF 8.704,00
Suitable for machine tables with fixing holes at distance
 between centers from 650 to 740 mm.
