A series of specific kits for various types of machining, already composed of everything necessary (bases, clamp bodies, supports, jaws )
02 - TFAST
02 - TFAST

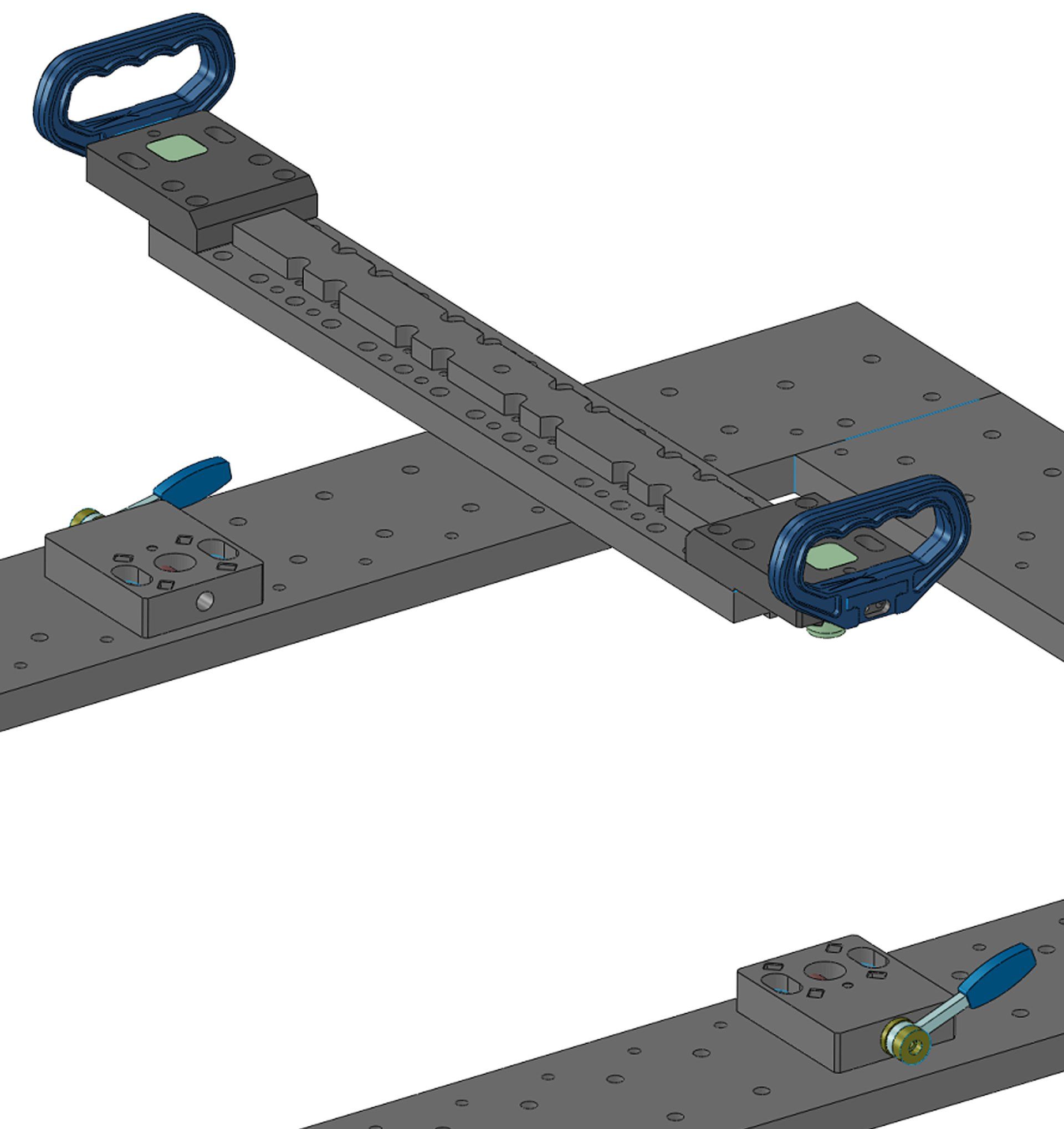

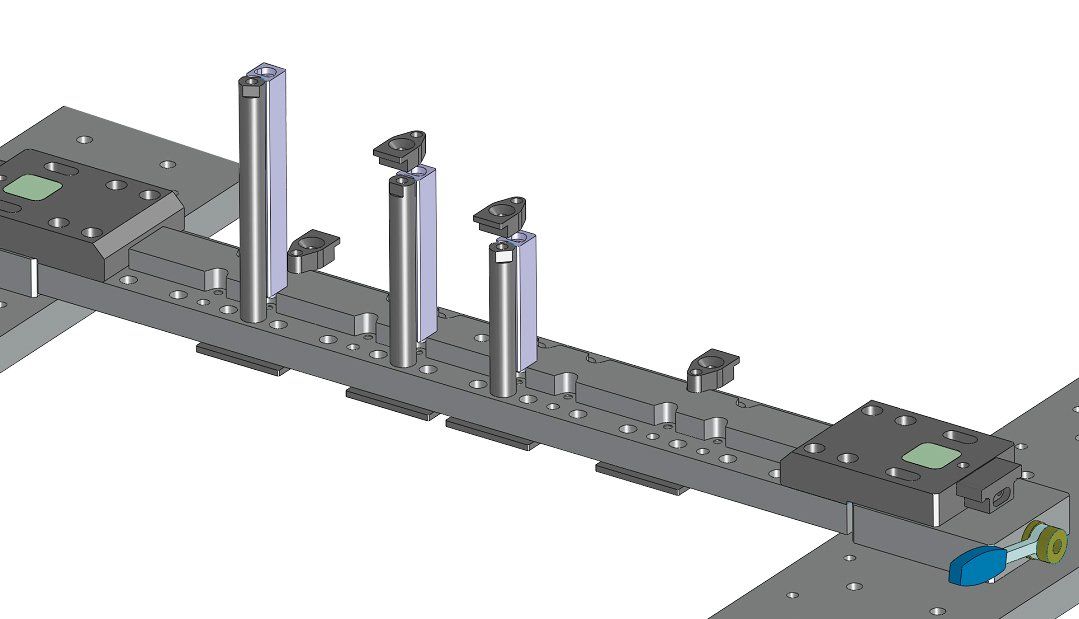

Crossbar for the fast fixing
Crossbar for the fast fixing
With repeatability tolerance of the placement of 0.005 mm
The fixing on the machine table is done by using N° 2 bases Art. 02 – FAST/B (supplied).

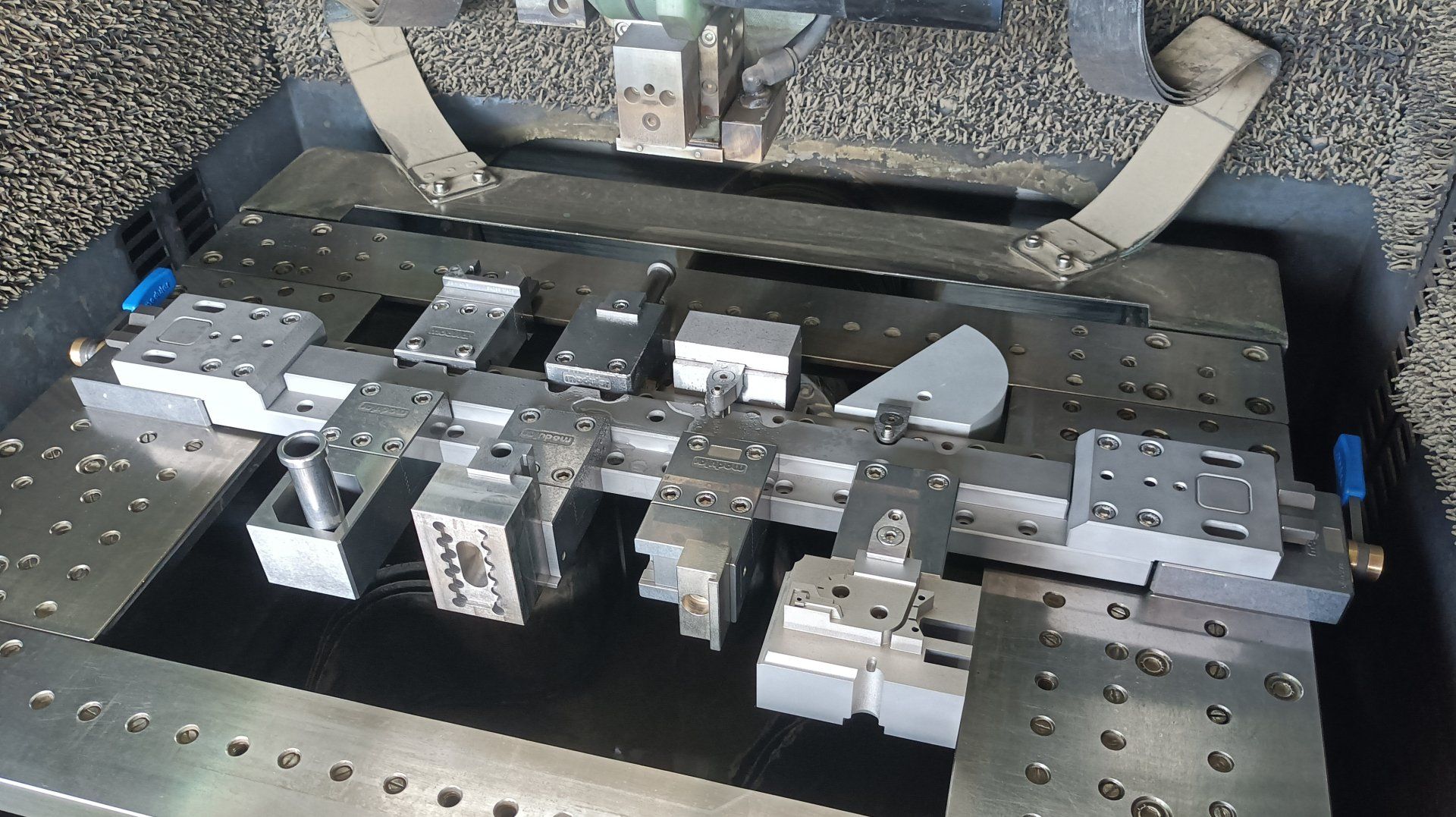

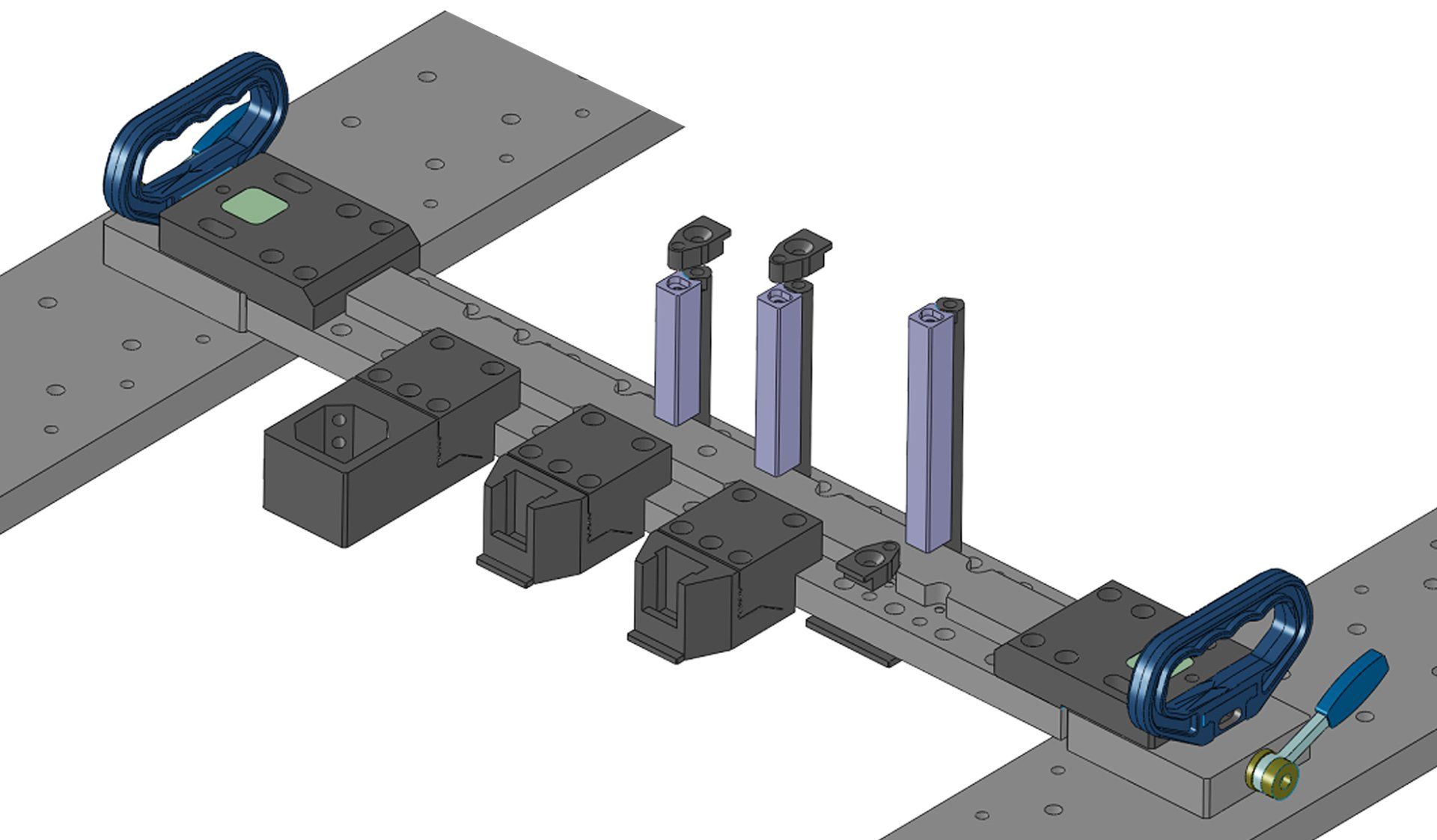

The workpiece is clamped by brackets 01 - SE or by using the clamp bodies of line 01.

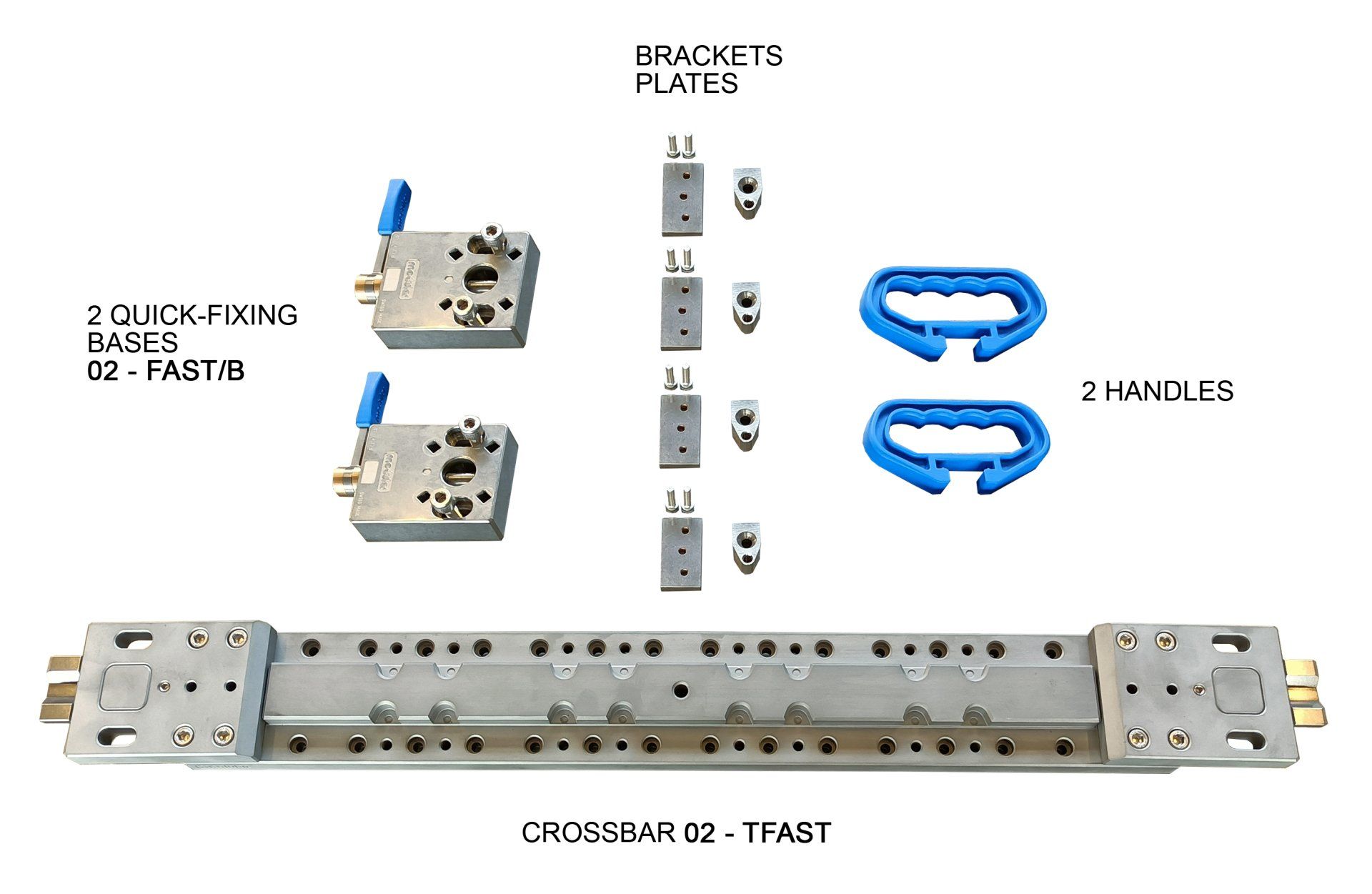

Supplies include :

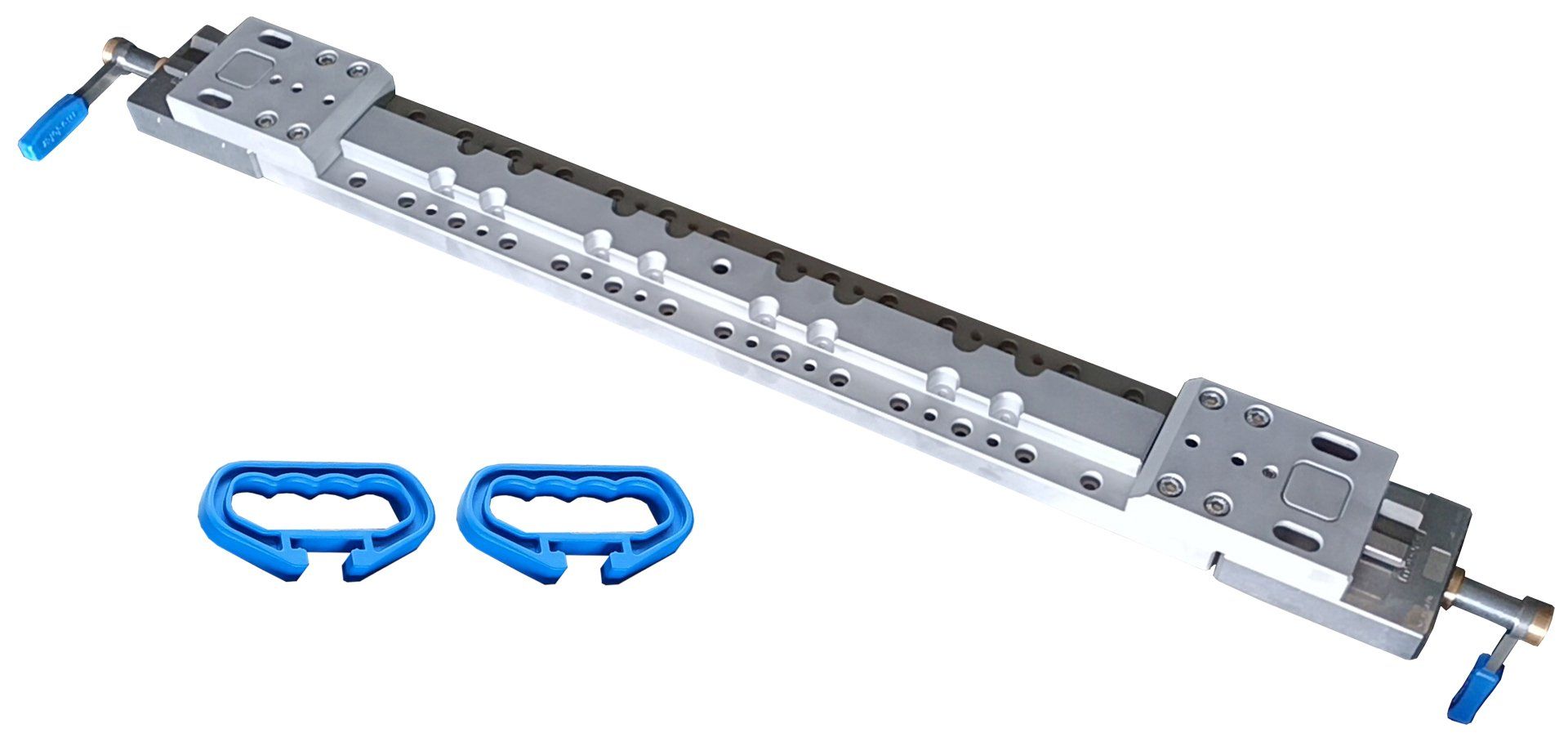

N° 1 Quick-fastening crossbar 02 - TFAST
N° 2 Bases for quick fixing 02 - FAST/B
N° 2 Handles
N° 4 Plates 02 - PS
N° 4 Brackets 01 - SE
For tables with fixing holes up to 600 mm:
CHF 4.348,00
For tables with fixing holes up to 7500 mm:
CHF 4.648,00
