01 - 4085
01 - 4085
Adjustable clamp - body
Adjustable clamp - body

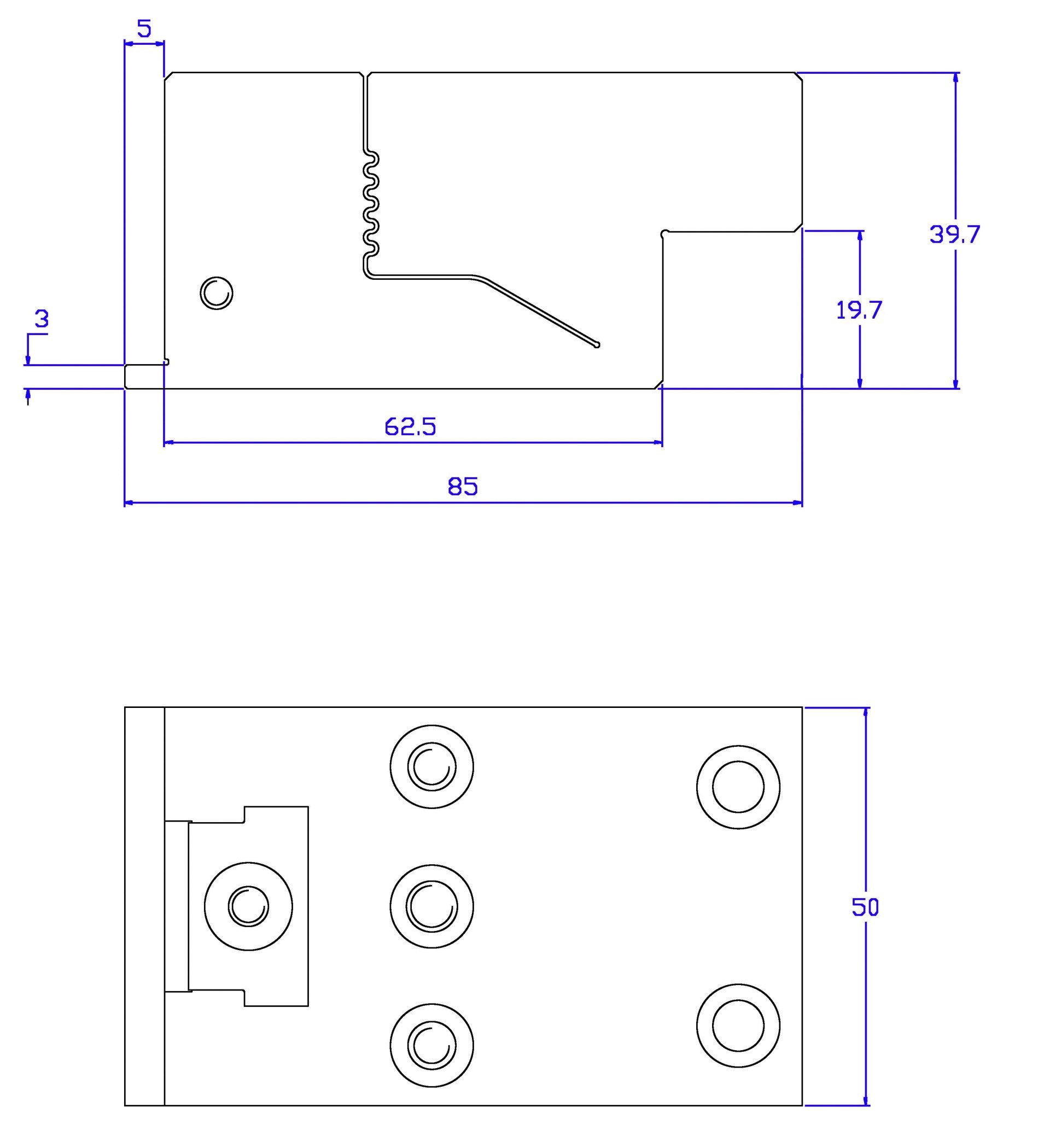

Adjustable clamp body with height 40 mm.
Fixing capacity according to the jaw used.
Supplied along with stop 01S.

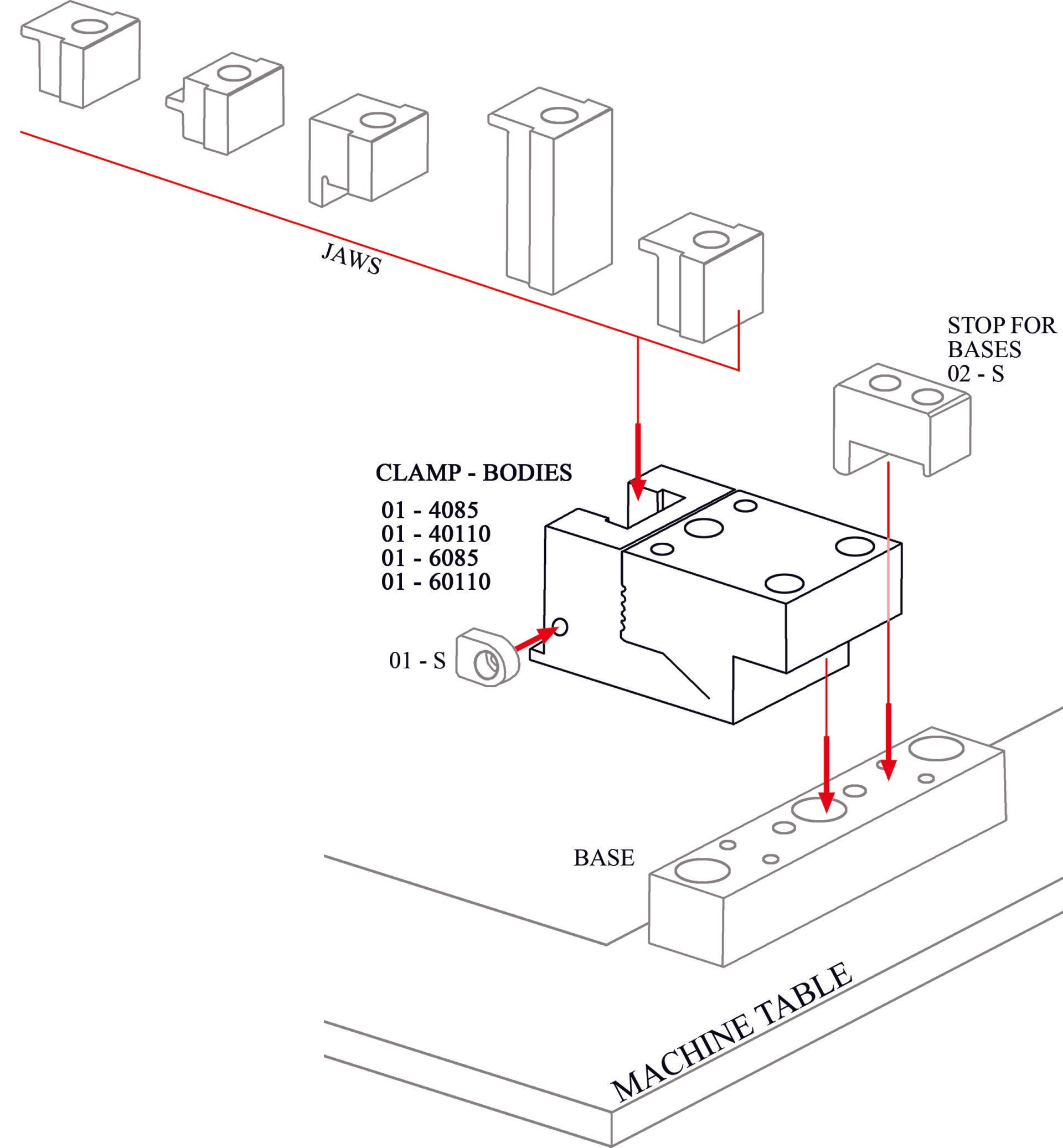

A base of the 02 line or a crossbar is required for anchoring to the machine table.
The workpiece is 3.3 mm above the machine table, allowing free passage of the lower thread guide head.
CHF 888,00
