A series of specific kits for various types of machining, already composed of everything necessary (bases, clamp bodies, supports, jaws )


01 - 150EP

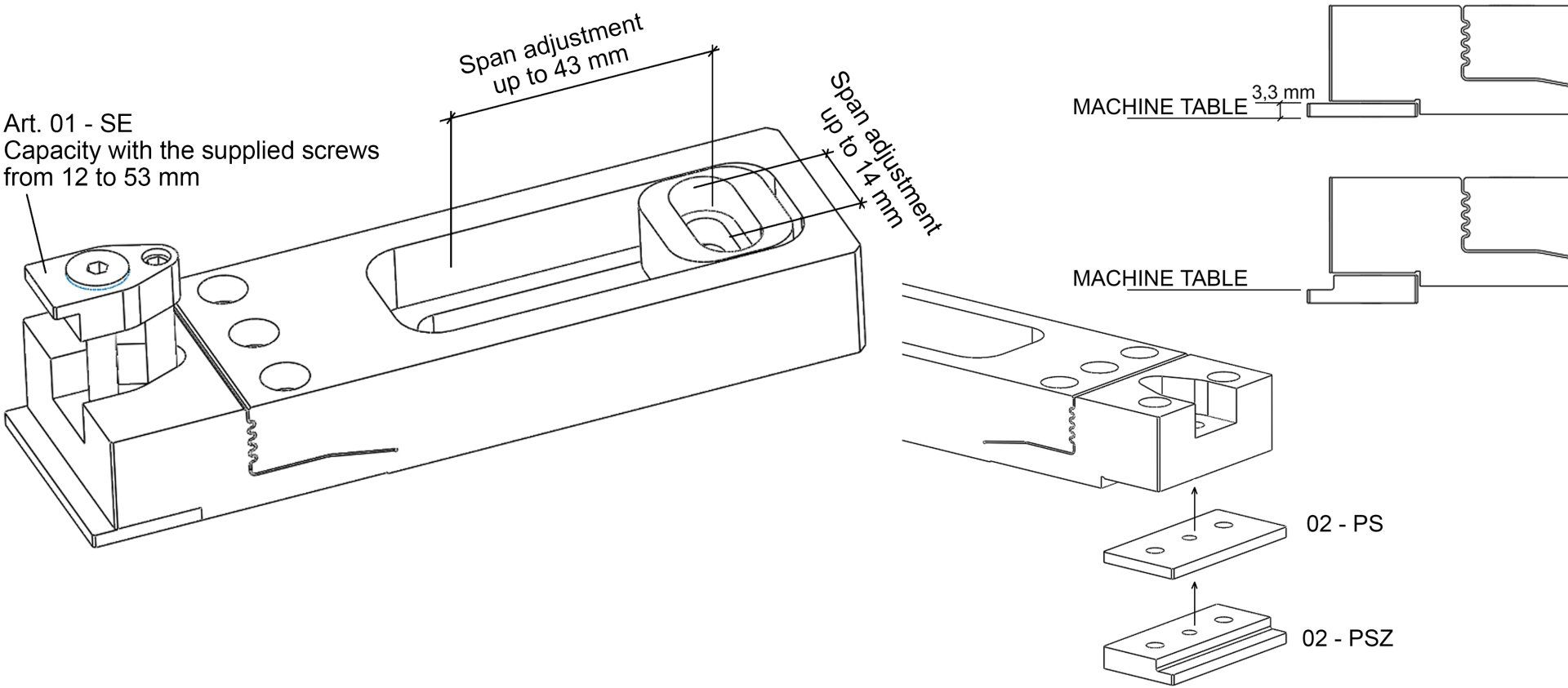

Extensible adjustable support

Exchangeable little plate for workpiece
(Item No. 02 - PS and item No. 02 - PSZ)

Span adjustment in length up to 43 mm.
Span adjustment in width up to 14 mm.

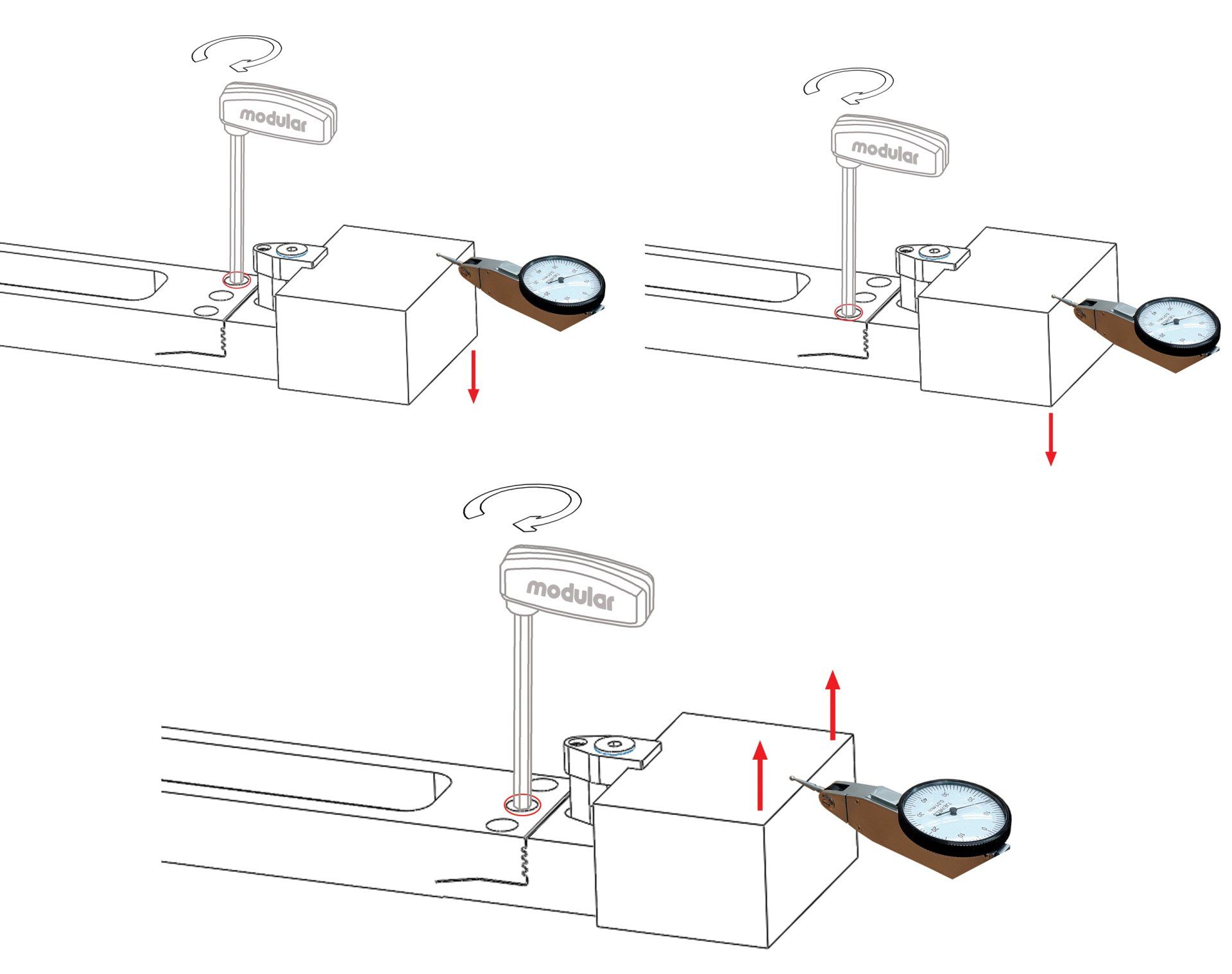

Technical characteristic: rotation with respect to the machine table.
Supplied with item No. 01 – SE.

Possibility to fix the piece at height 3,3 mm from the machine table, resulting in free passage of the lower thread guide head, or the fixing of the workpiece at zero height.
CHF 730,00
